Introduction
In the global B2B commercial transport and material handling sectors, selecting the right crane capacity is a critical strategic balance. Choosing a small 3-ton to 5-ton crane often leaves contractors struggling with insufficient working radiuses and premature hydraulic overload. Conversely, deploying a 12-ton or 16-ton heavy crane inflates initial chassis procurement costs, consumes valuable payload allowance, and requires heavy 3-axle or 4-axle commercial vehicles that are difficult to maneuver on narrow municipal sites.
This is precisely why we recommended an 8 ton telescopic boom crane—specifically Model HY8S7. Representing the ideal engineering equilibrium, an 8-ton capacity crane mounted on a standard commercial chassis offers the perfect balance of heavy close-range lifting power and extraordinary long-range reach. By analyzing the structural, hydraulic, and kinematic parameters of Model HY8S7, this guide demonstrates why this specific 7-section unit delivers superior Total Cost of Ownership (TCO), exceptional operational versatility, and reliable long-term ROI for contractors, equipment dealers, and municipal fleet managers.
1. Engineering Architecture of Model HY8S7

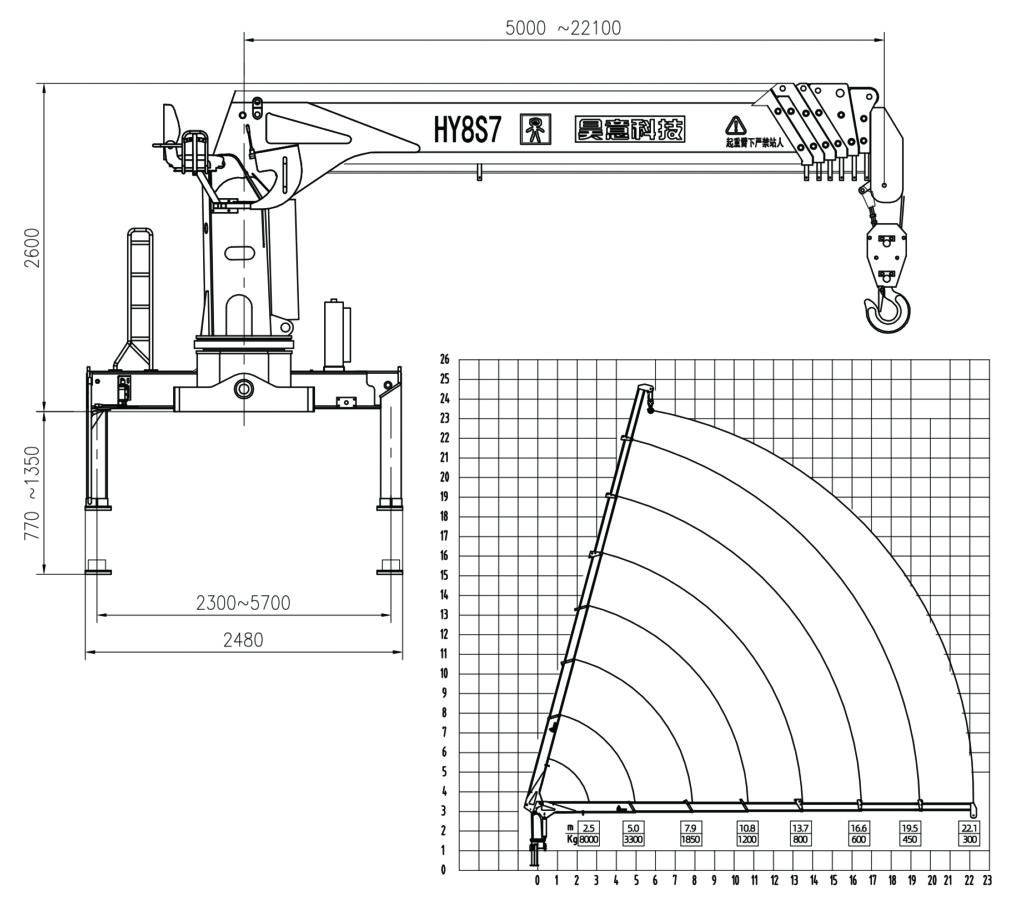

A thorough evaluation of Model HY8S7 reveals a refined mechanical architecture engineered for maximum structural rigidity and compact vehicle integration. The structural drawing highlights key dimensional metrics that allow seamless chassis installation without exceeding standard highway transport envelopes.
• Height & Overall Profile: The pedestal-to-boom pivot structure maintains a total pedestal height of 2,600 mm, establishing a low center of gravity while keeping the folded boom clear of truck cabs.
• Subframe & Base Footprint: The main mounting base features a compact width of 2,480 mm, matching standard heavy commercial chassis frame widths for direct mounting without wide-load transport permits.
• Boom Length Range: The 7-section hexagonal/polygonal boom contracts to a compact stowed length of 5,000 mm (5.0 meters) for road transit and extends out to a maximum length of 22,100 mm (22.1 meters).
2. Deep-Dive Load Chart Analysis: From 8,000 kg to 300 kg
The true value of any hydraulic crane lies within its load chart. The load capacity curve of Model HY8S7 showcases remarkable hydraulic power distribution across its entire 22.1-meter working radius:
• 2.5m Working Radius — 8,000 kg Maximum Rated Lift: At its fully retracted base length (5.0m), the HY8S7 achieves its maximum structural capacity of 8,000 kg (8.0 tons) at a 2.5m radius. This provides massive power for self-loading heavy machinery, steel coils, and concrete vaults directly onto the truck bed.
• 5.0m Working Radius — 3,300 kg Capacity: Extending to 5.0 meters, the crane maintains a robust 3,300 kg capacity, perfect for loading standard ISO container cargo or industrial equipment across flatbeds.
• 7.9m Working Radius — 1,850 kg Capacity: At 7.9 meters, the capacity remains at 1,850 kg, enabling smooth over-side placement across dual-lane roads or roadside trenches.
• 10.8m Working Radius — 1,200 kg Capacity: Crossing the 10-meter radius threshold, the HY8S7 holds 1,200 kg, providing ample rating for structural steel erection and prefab wall panel positioning.
• 13.7m Working Radius — 800 kg Capacity: At 13.7 meters, the crane lifts 800 kg, making it ideal for utility pole setting, tree trimming, and powerline maintenance.
• 16.6m Working Radius — 600 kg Capacity: Pushing out to 16.6 meters, the unit retains 600 kg of lifting capacity for light structural materials.
• 19.5m Working Radius — 450 kg Capacity: At nearly 20 meters of horizontal reach, the crane lifts 450 kg, perfect for rooftop HVAC component positioning.
• 22.1m Maximum Working Radius — 300 kg Reach Limit: At its absolute horizontal limit of 22.1 meters, the HY8S7 still delivers a 300 kg rated capacity, allowing lightweight tools and materials to be transferred over structural obstacles.Maximum Vertical Hook Height: When elevated to its maximum boom angle of approximately 75° to 80°, the HY8S7 achieves a maximum vertical tip height of nearly 24.8 to 25.0 meters above ground level. This extraordinary height envelope allows the crane to effortlessly service 6-story to 7-story residential and commercial buildings.
3. Structural & Kinematic Advantage: The 7-Section Boom
The ‘S7’ designation in Model HY8S7 signifies a 7-section telescopic boom configuration. In conventional crane design, 8-ton cranes are commonly equipped with 4-section or 5-section booms. The decision to engineer a 7-section extension system provides three distinct technical benefits:
1. Superior Retracted Length vs. Extended Reach Ratio: A 7-section structure allows the retracted boom length to remain extremely short (5.0 meters). This prevents excessive front or rear boom overhang on medium-wheelbase trucks, ensuring compliance with local vehicle length regulations.
2. Granular Boom Length Control: Operators can fine-tune the extended boom length across 7 telescoping stages (5.0m, 7.9m, 10.8m, 13.7m, 16.6m, 19.5m, and 22.1m). This modular extension keeps the boom point close to the load, minimizing unneeded boom deflection and reducing wind drift during high-altitude lifts.3. High-Tensile Steel Profile & Smooth Extension: The multi-stage polygonal boom structure utilizes high-yield steel plates that maximize structural stiffness while reducing deadweight. Internal synchronization cables and hydraulic extension cylinders ensure smooth, sequential extension under load.
4. Footprint & Stability Footprint: 2,300 mm to 5,700 mm Outriggers
Lifting 8,000 kg safely requires an unyielding stability base. Model HY8S7 features an advanced hydraulic H-type/radial outrigger system designed for rapid setup and maximum ground clearance:
• Outrigger Extension Span (2,300 mm to 5,700 mm): In fully stowed transport mode, outriggers retract within a narrow 2,300 mm profile. When fully extended for heavy lifting, the outriggers span out to 5,700 mm (5.7 meters), creating a wide, rigid stability footprint that safely absorbs tipping moments.• Vertical Outrigger Stroke (770 mm to 1,350 mm): The hydraulic outrigger legs feature a vertical extension range of 770 mm to 1,350 mm. This generous stroke allows operators to level the crane on uneven construction terrain, roadside slopes, or unpaved shoulders without needing extensive wooden dunnage blocks.
5. Ideal Field Applications & Fleet Deployment Scenarios
Thanks to its 22.1m reach, 24.8m height envelope, and 8,000 kg maximum capacity, the HY8S7 is a versatile asset across multiple B2B sectors:
• Municipal Infrastructure & Utility Maintenance: Perfect for setting electric transformers, replacing utility poles, and installing streetlight infrastructure over roadside barriers.
• Building Construction & Glazing: The 24.8m vertical reach allows easy hoisting of roof trusses, formwork, and glass vacuum lifters up to 6-story building envelopes.• Equipment Logistics & Material Handling: Enables single-operator transport trucks to self-load heavy machinery, generator sets, and industrial valves without hiring secondary mobile cranes.
6. B2B Procurement Checklist & Total Cost of Ownership (TCO) Analysis
When evaluating fleet investments, procurement managers look closely at Total Cost of Ownership (TCO). The HY8S7 excels in TCO optimization:
1. Single-Truck Asset Efficiency: By combining a high-capacity 22.1m crane with a standard cargo truck bed, businesses eliminate the cost of deploying separate transport trucks and mobile cranes to job sites.
2. Chassis Compatibility: The compact 2,480 mm base and 5,000 mm stowed length allow mounting on mainstream 2-axle (16-ton GVWR) or 3-axle (25-ton GVWR) commercial truck chassis, lowering chassis acquisition costs.
3. Low Maintenance & High Residual Value: High-tensile steel construction, standardized hydraulic seals, and external wear-pad adjustments keep routine maintenance costs minimal over years of service.
Conclusion
Recommending an 8-ton telescopic boom crane comes down to maximizing operational capability per dollar invested. Model HY8S7 stands out as an exceptional performer in its class. With an 8,000 kg close-range rating, a 22.1-meter horizontal reach, a 24.8-meter vertical tip height, and a wide 5.7-meter outrigger footprint, the HY8S7 transforms any standard commercial truck into a self-sufficient, high-profit lifting unit. Contact our technical engineering team today to request complete CAD chassis integration layouts, hydraulic PTO matching specifications, and direct-factory quotation packages.
FAQs
Q1: What is the maximum lifting height and horizontal reach of the HY8S7 8-ton crane?
A: Model HY8S7 features a maximum horizontal working radius of 22.1 meters (lifting 300 kg at tip) and a maximum vertical hook height of approximately 24.8 to 25.0 meters when fully elevated.
Q2: Why is a 7-section boom better than a 4-section boom on an 8-ton crane?
A: A 7-section boom (S7 configuration) allows a much shorter retracted length (5.0 meters) for easy road transport while providing longer maximum extension (22.1 meters) and finer length adjustments for tight job sites.
Q3: What chassis requirements are needed to install the HY8S7 8-ton telescopic crane?
A: The HY8S7 requires a medium-to-heavy commercial truck chassis with a suitable Gross Vehicle Weight Rating (GVWR) of at least 16 to 25 tons, a matching Power Take-Off (PTO) output, and reinforced subframe mounting.
Q4: How wide do the outriggers extend on the HY8S7 crane?A: The hydraulic outriggers feature a fully extended lateral span of 5,700 mm (5.7 meters) for lifting stability, and a vertical stroke range of 770 mm to 1,350 mm for levelling on uneven ground.
